SB Live! 24-bit External

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 48 kHz

getestet von PIMP für overclockers.at




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.00, -0.00Excellent
Noise level, dB (A): -101.6Excellent
Dynamic range, dB (A): 98.1Excellent
THD, %: 0.0003Excellent
IMD + Noise, %: 0.0037Excellent
Stereo crosstalk, dB: -103.5Excellent
IMD at 10 kHz, %: 0.0040Excellent

General performance: Excellent

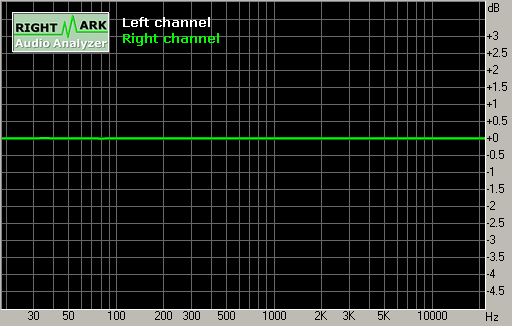

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.00, +0.01
From 40 Hz to 15 kHz, dB-0.00, +0.00

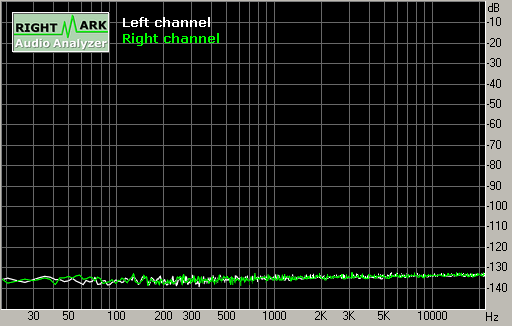

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-99.8-99.9
RMS power (A-weighted), dB:-101.6-101.6
Peak level, dB FS:-91.5-91.5
DC offset, %:0.000.00




Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+96.4+96.4
Dynamic range (A-weighted), dB:+98.2+98.1
DC offset, %:0.000.00

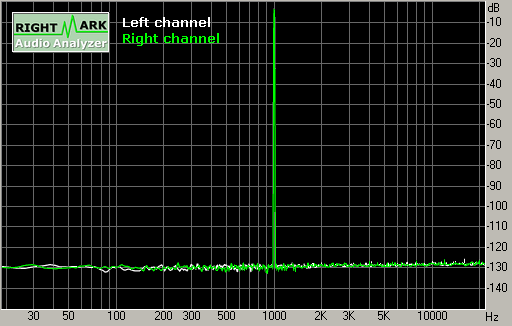

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.00030.0004
THD + Noise, %:0.00300.0030
THD + Noise (A-weighted), %:0.00250.0024




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.00370.0037
IMD + Noise (A-weighted), %:0.00300.0031




Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-105-105
Crosstalk at 1 kHz, dB:-102-102
Crosstalk at 10 kHz, dB:-98-99




IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.00400.0039
IMD + Noise at 10 kHz, %:0.00400.0040
IMD + Noise at 15 kHz, %:0.00410.0040

This report was generated by RightMark Audio Analyzer 5.5
